Denali's new D3 LED lights are built upon a decade of DENALI innovation to deliver the highest performing 36-watt street-legal driving light to hit the market. Their D3 driving light features our signature TriOptic™ beam system that includes a spot and hybrid driving lens with each light pod. Unlike previous TriOptic™ lights, the D3 hybrid driving beam is ECE and SAE compliant to deliver an impressive street-legal high beam in North America and European Union countries. But what if you're not concerned with street-legal precision and just want off-road outrageous? We got you covered too! The D3 spot lens was engineered for maximum beam distance measuring over 1900 feet at 1 lux (per pair). No other 36-watt light even comes close. The spot beam is so impressive it actually outperforms top-tier competitor's lights that are twice its size.
Features
- TriOptic™ Lens System (includes spot and hybrid lenses with each pod)
- Best in class street-legal spot and hybrid beams (SAE/DOT & ECE certified)
- High-Intensity Series Cree LEDs outputting 2100 lumens per pod
- DataDim™ 3-wire smart-dimming technology (compatible with all DENALI dimming controllers)
- DrySeal™ Submersible Waterproof light can withstand the most extreme environments
- Impact PC™ Polycarbonate bezels won't crack, fade or corrode like traditional aluminum bezels.
- LiveActive™ Thermal Management keeps the LEDs cool preventing the loss of light output from overheating
- Low profile mounting bracket with stainless steel hardware included
- Additional SAE/DOT & ECE certified hybrid driving lens included (spot lens installed)

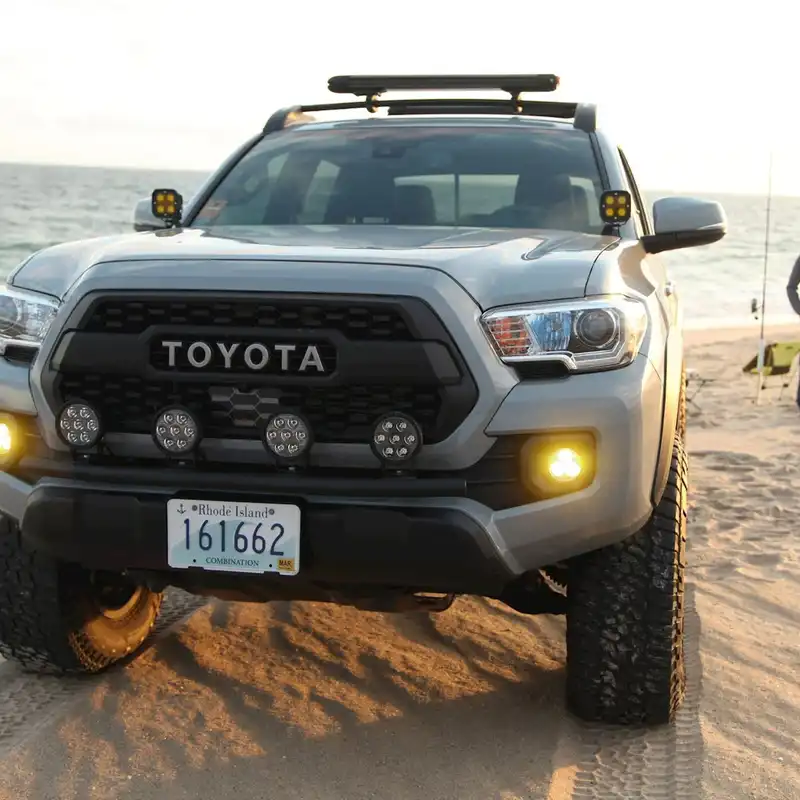

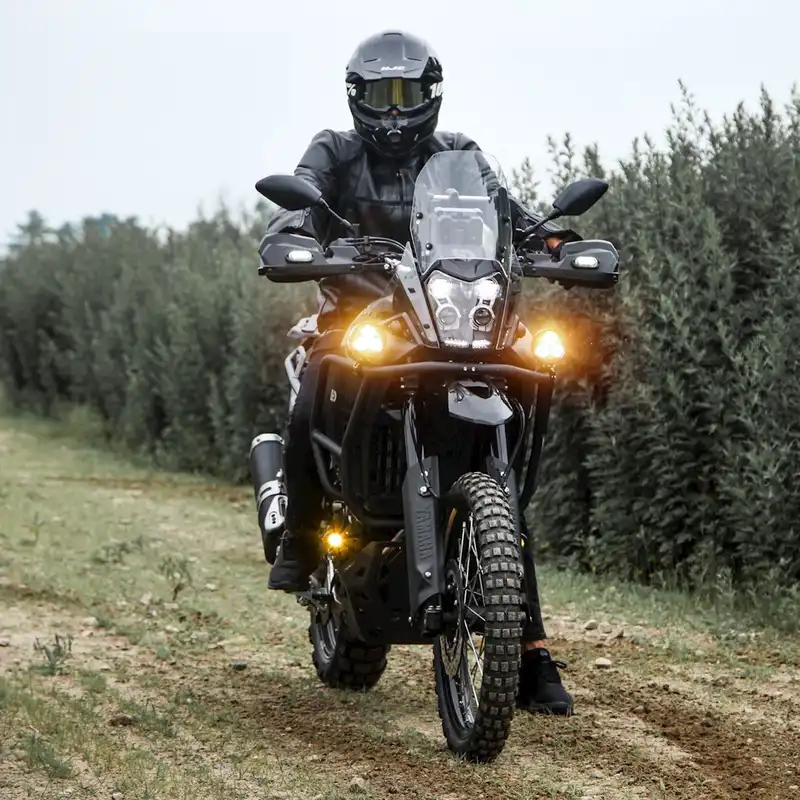

- Amber & Selective Yellow lenses available (sold separately)
What’s in the Box?

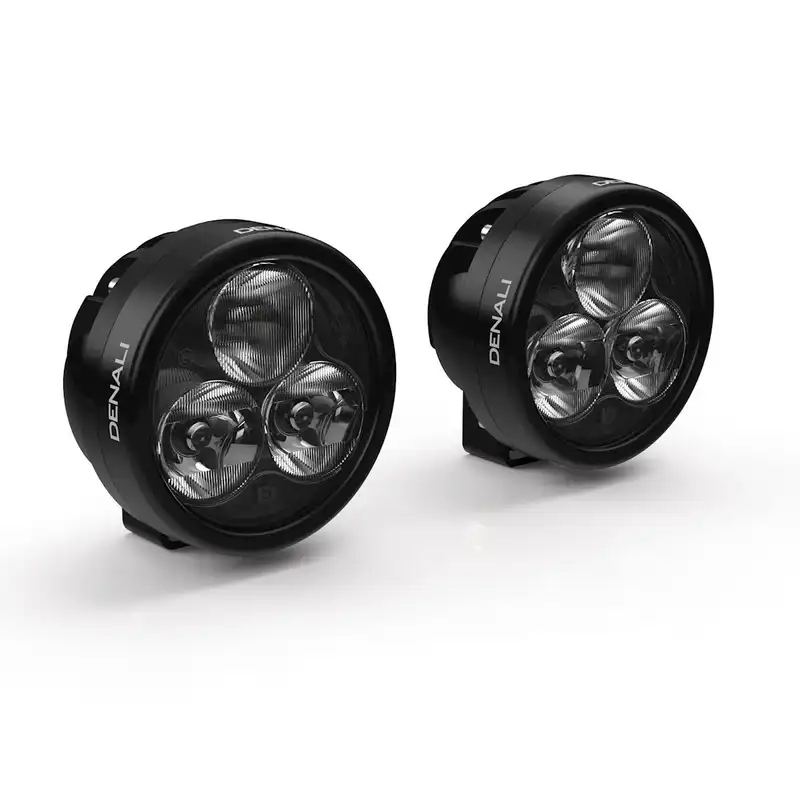

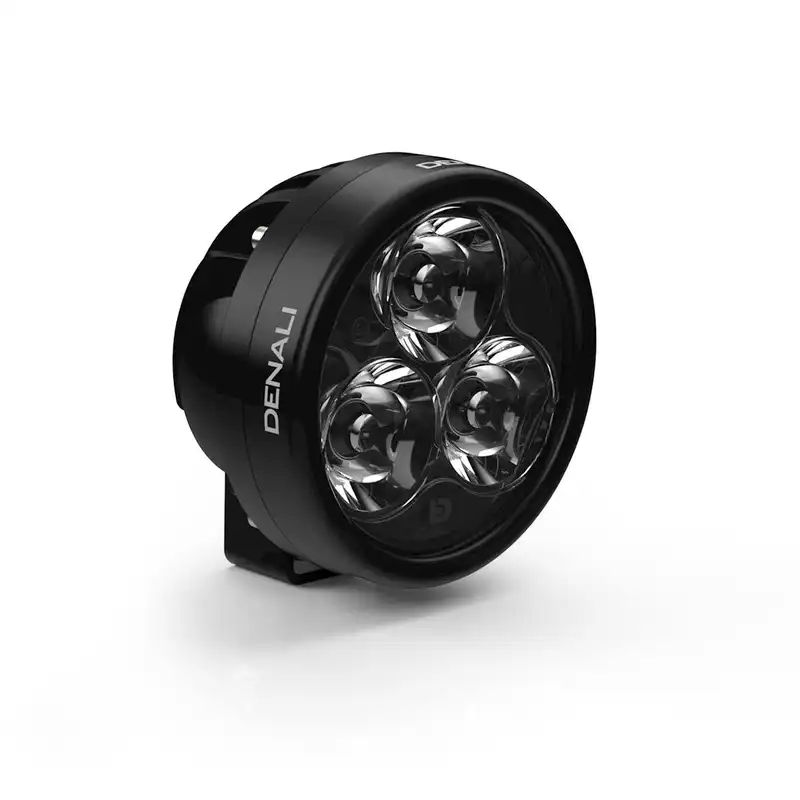

- (1x) D3 LED Light Pod (spot lens installed)
- (1x) D3 Hybrid Lens
- (1x) Hinge Mounts with M8 Stainless Steel Hardware
- (1x) Wiring Pigtail
Specs (single pod)

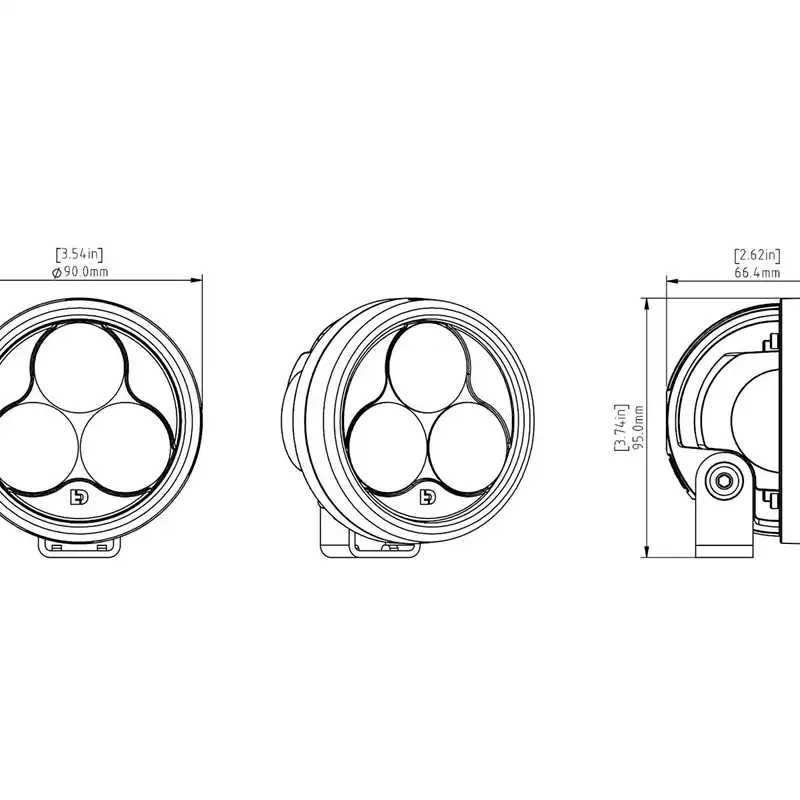

- Pod Size: 3.5" (90mm) Round x 2.62" (66mm) Deep
- LED: (3x) 11 Watt Cree XP-P LEDs
- Power Draw: 36 Watts (3 Amps)
- Lumens: 2100
- DataDim™ Compatible: Yes
- Operating Voltage: 9-32V DC
- IP67 Waterproof & Submersible
- Hybrid Lens Certifications: SAE/DOT J581 & ECE R112
- Spot Lens Certifications: ECE R112

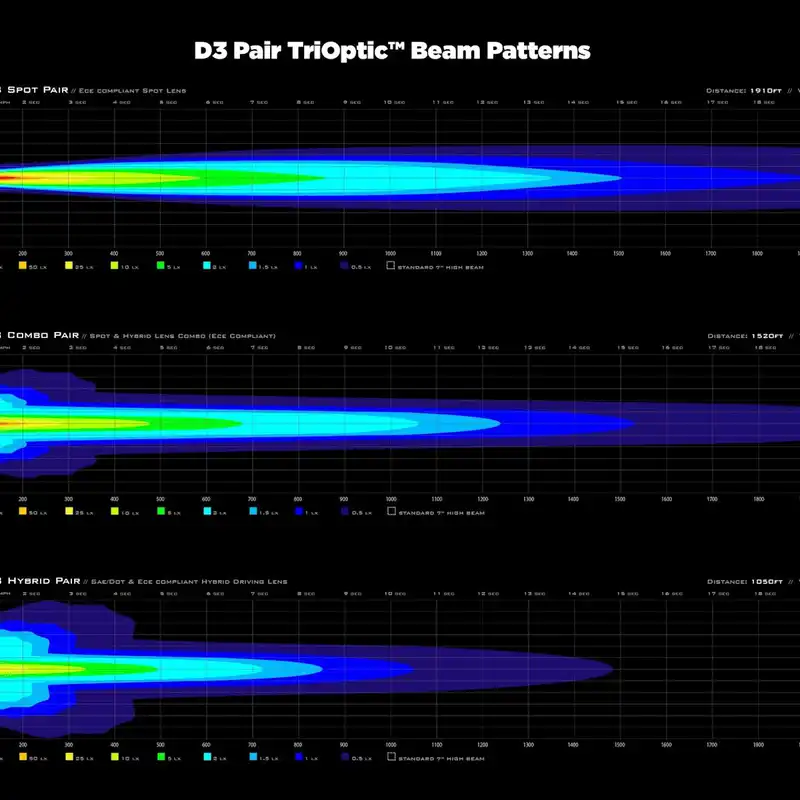

Beam Performance (pair)
Spot Beam
- Beam Distance (at 1 lux): 1910 feet (582 meters)
- Beam Width (at 1 lux): 100 feet (30 meters)
Combo Beam (1 spot, 1 hybrid)
- Beam Distance (at 1 lux): 1520 feet (463 meters)
- Beam Width (at 1 lux): 175 feet (53 meters)
Hybrid Beam (EU certified lens)
- Beam Distance (at 1 lux): 1050 feet (320 meters)
- Beam Width (at 1 lux): 225 feet (69 meters)
Please note: The Hybrid lens (included in this kit) Is the only EU-certified lens for this kit.
